I have programmed repeatable drone flights using Litchi so that i can take progress photos of the Copenhagen Lightrail.

The alignment is good … but it’s not perfect.

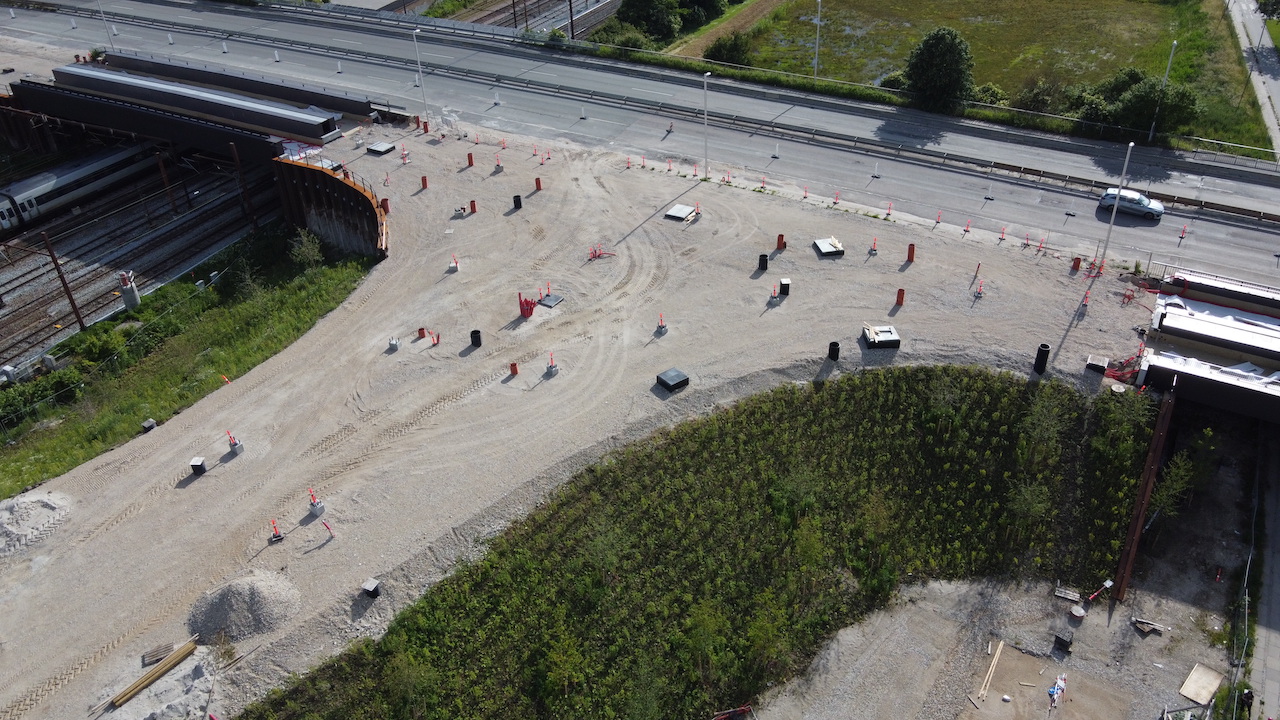

June 2022

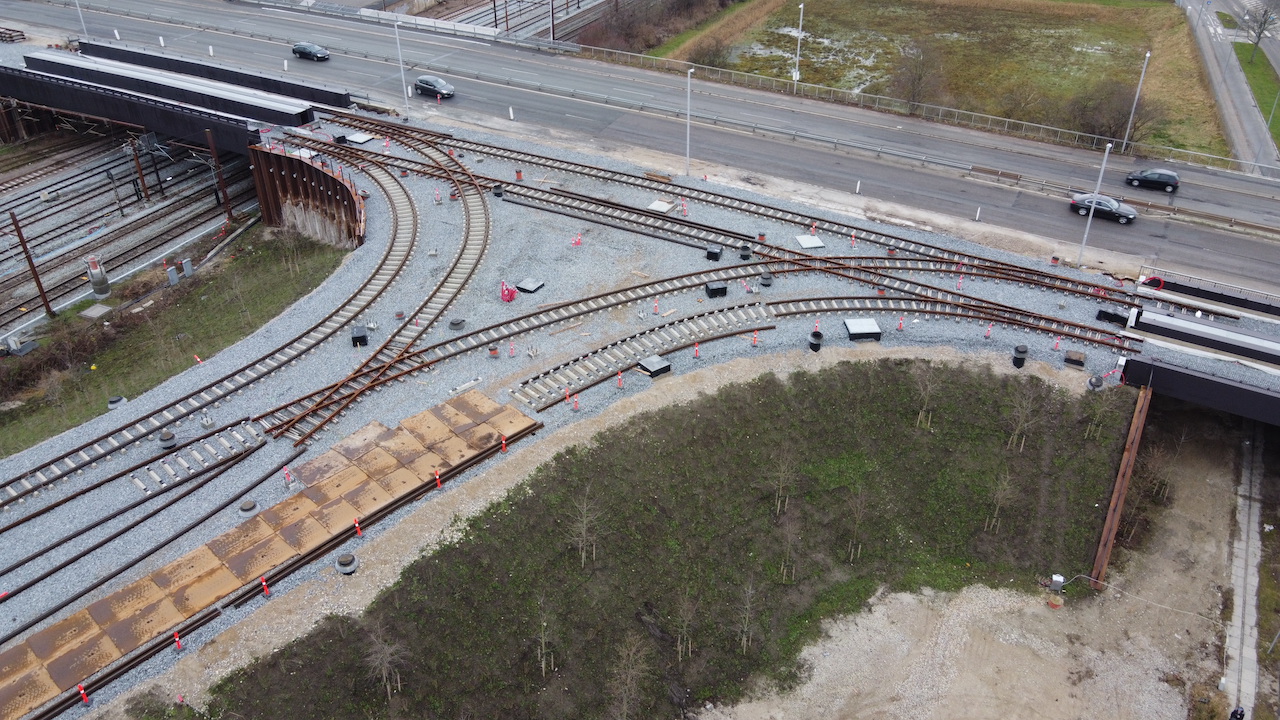

January 2023

If we try to overlay these with a slider, we can see that the images aren’t perfectly algined. We can do better!

Comparison

Try using AI

My first instinct was to turn to AI. I tried Python’s cv2 library and various combinations of algorithms to auto-detect features, match and skew the photos so that they match. The results were not good. It seems the photos are not similar enough for AI to be able to find the common points.

Most of the time i was getting Star Wars Hyperspace pictures like this:

Sometimes it seemed to match the curve of the bank but flip it round the wrong way:

Hugin

What i needed was a way of choosing the match points myself. I remembered Hugin, an open-source photo tool i used to use to stitch panoramas together. That had a way of matching common elements between photos. What if that could be used for layering similar photos taken at a different times?

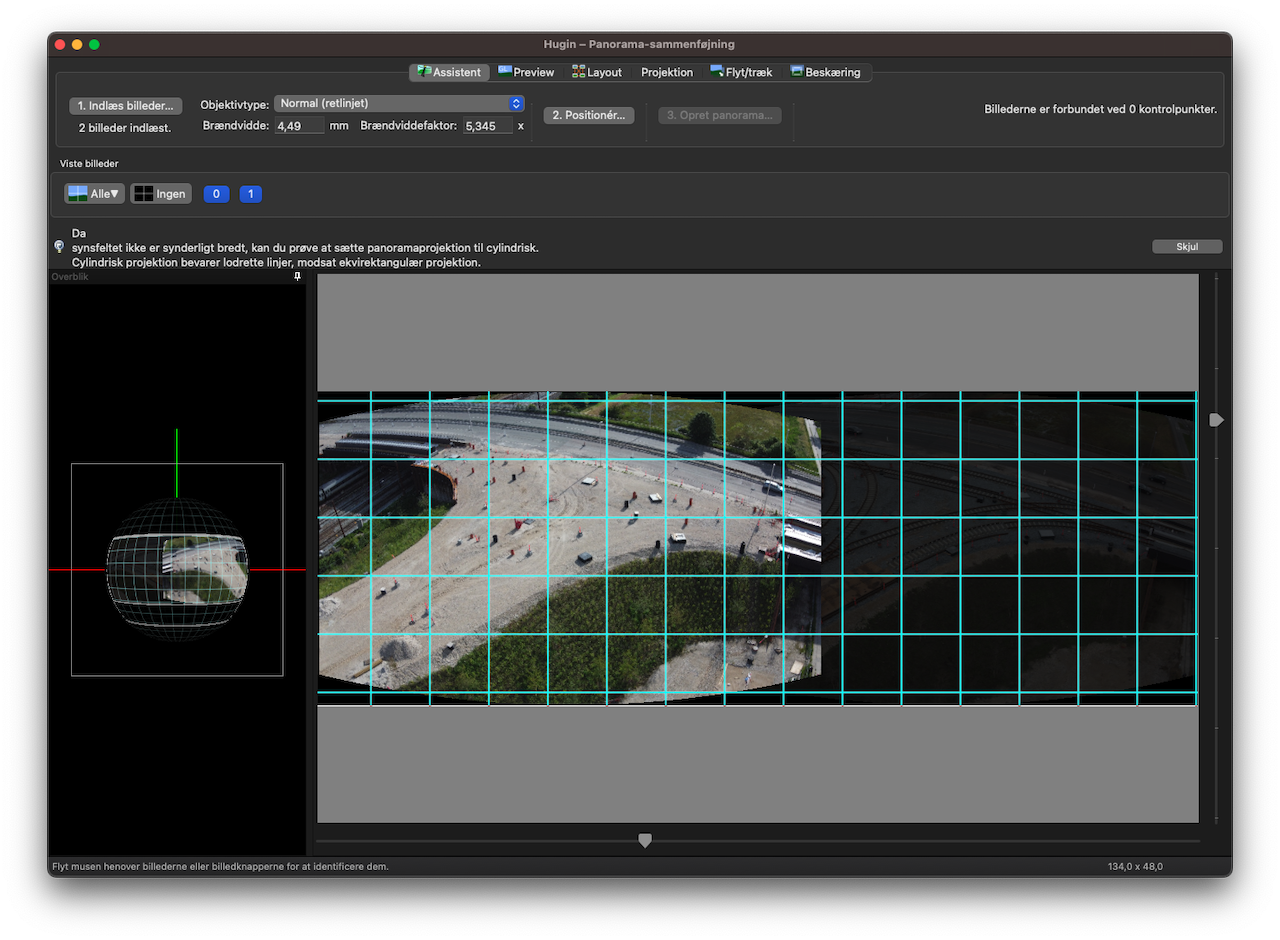

I installed Hugin and loaded the images.

Initially it seemed to want to treat them as a panorama, side by side. I pressed the “Align” button and it told me it couldn’t find any common points, so i would have to find them myself. Perfect!

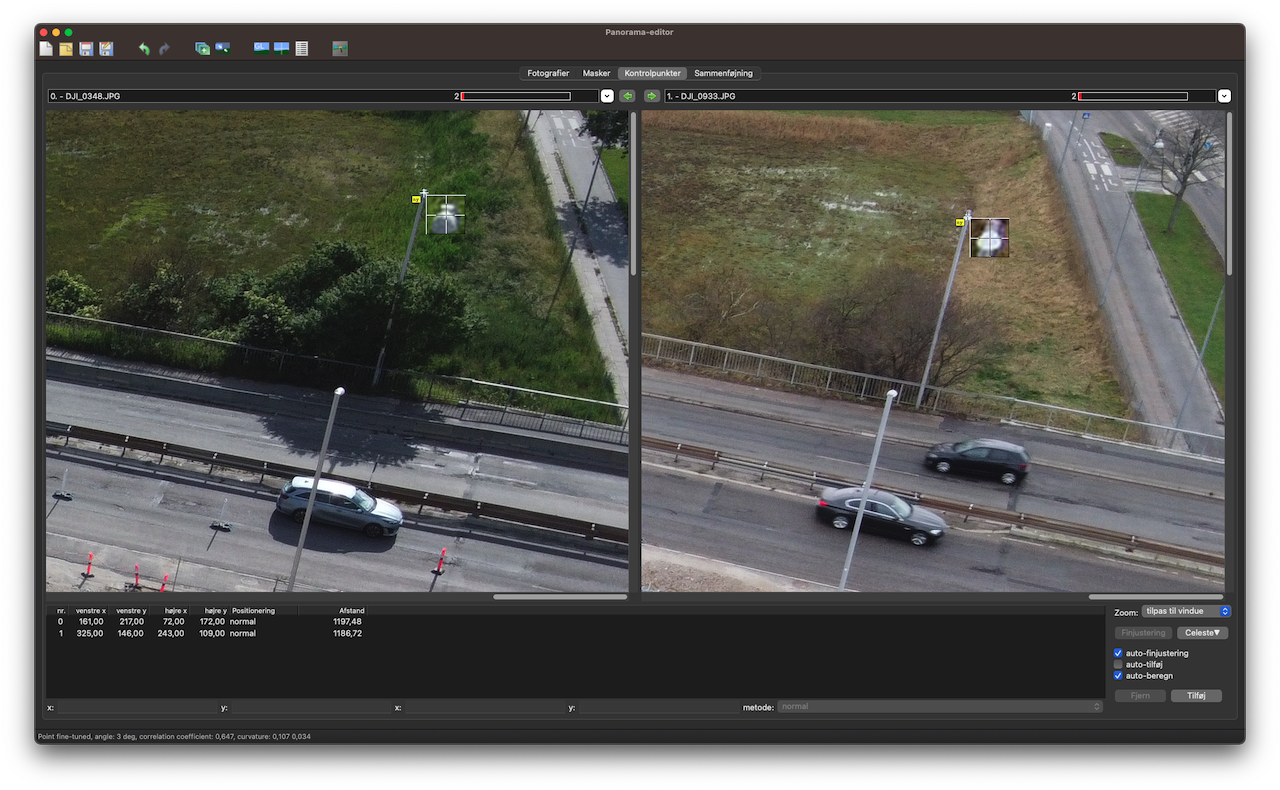

So i went about finding common features in both photos.

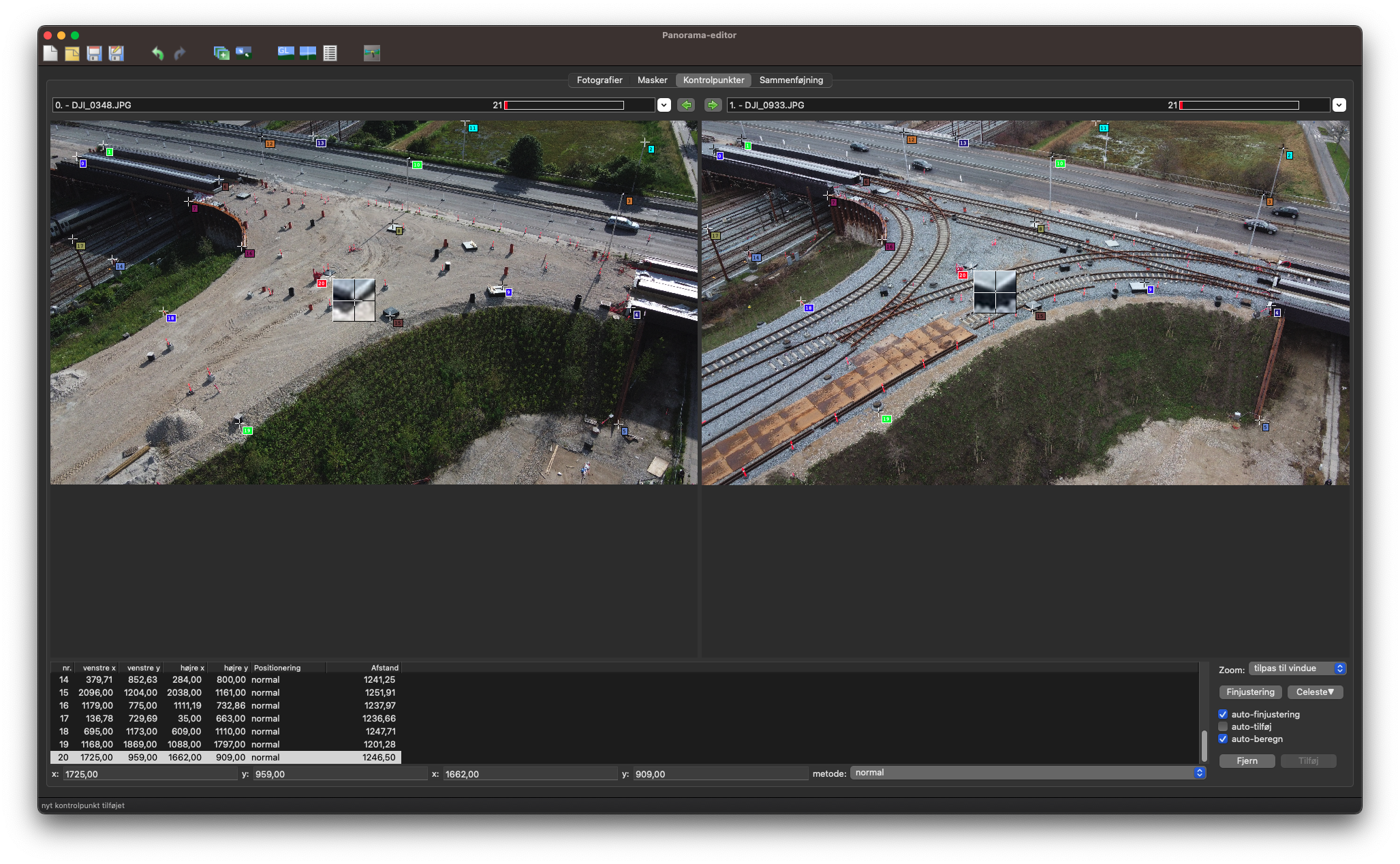

I chose corners and areas of high contrast. I ended up with 20 points, spread across as much of the two photos as i could match.

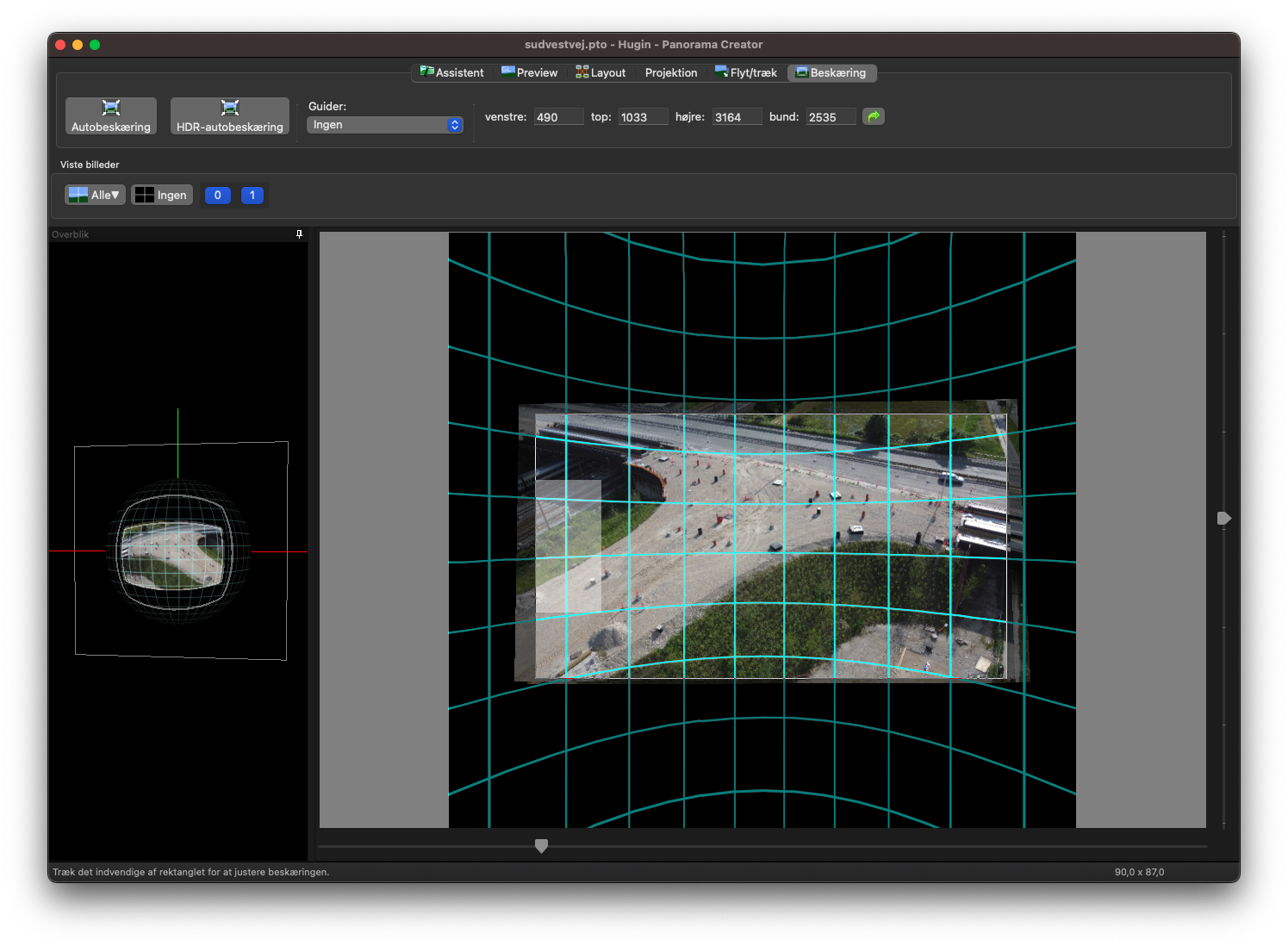

This time, when i pressed “Align” it managed to align them pretty nicely! All i had to do was choose a good crop that worked for both photos and export them.

Finished comparison

Now the images are much better algined, so a slider comparison works really well.

As we get closer to the completion of Copenhagen Lightrail i’ll be making more of these comparison photos, so i’m glad to have found a way to align the images!

See more about Copenhagen Lightrail at dinletbane.dk.
